Actuator 1,0 bar / 14 psi

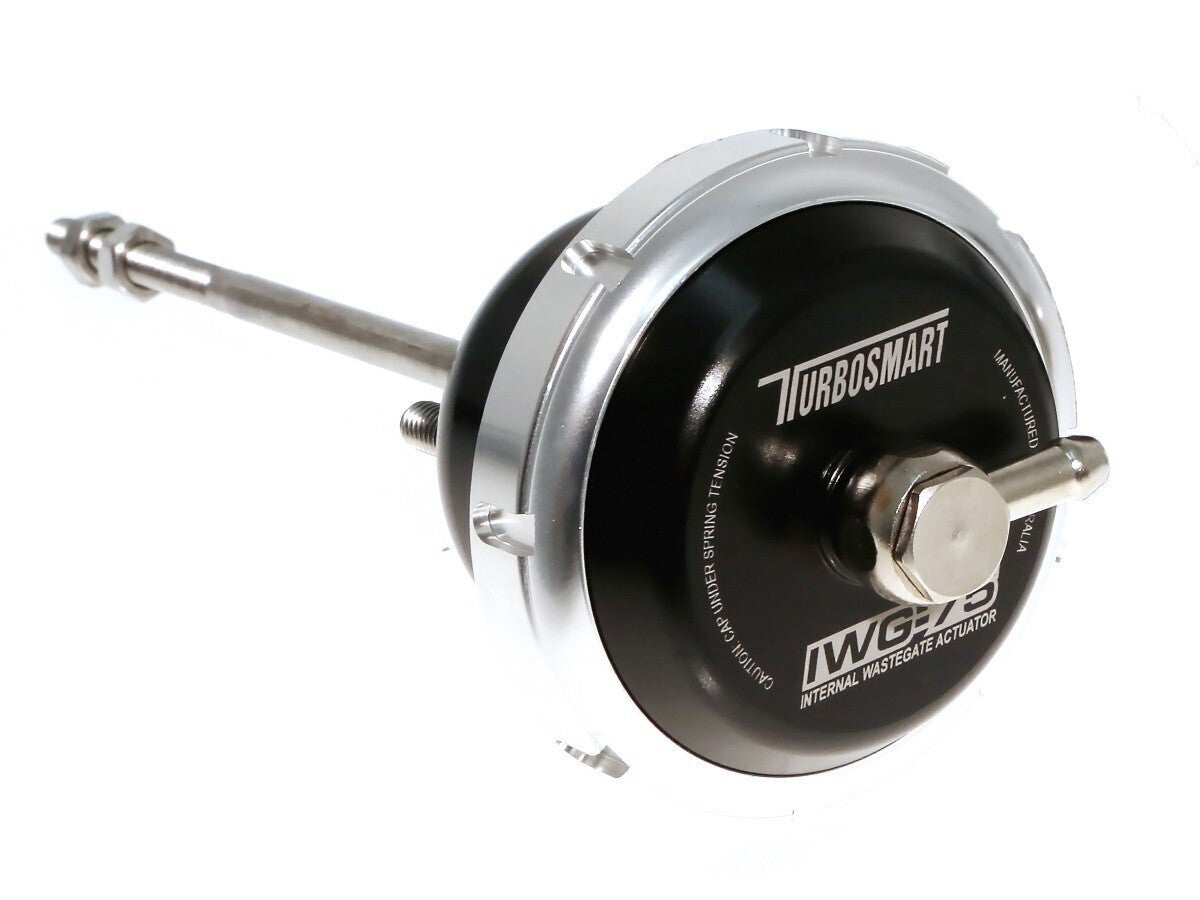

Internal Wastegate Actuator BorgWarner B1-serie Single Scroll

For Single Scroll EFR 6258, EFR 6758, EFR 7163

Designed as a stock replacement for the B1 frame SingleScroll EFR range of turbos, with 120mm rod. Turbosmart Internal Wastegate Actuator provides better turbo response and greater sensitivity when managing boost pressures.

Features:
- Silicone diaphragm with Nomex reinforcement to withstand high temperatures.
- High grade, billet aluminum construction.
- Stainless steel rods and connecting clevis for corrosion resistance.
- Locking Collar design cap allows for quick spring changes.
- Ideal for use with any Turbosmart boost controller.

Fits to:
EFR6258 Single Scroll
EFR6758 single Scroll
EFR7163 single Scroll

Boost: 1,0 bar / 14 psi

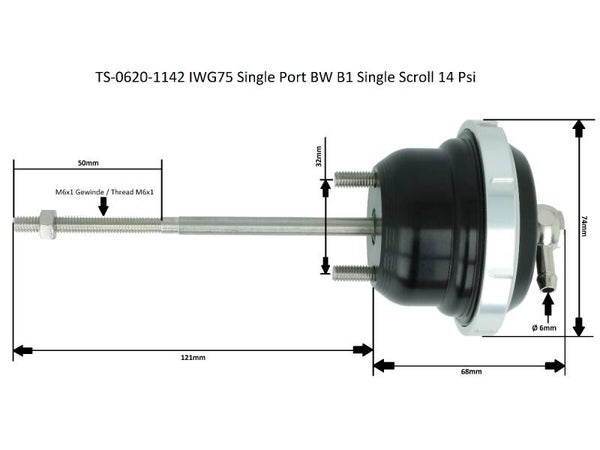

Geomtric dimensions:
Rod thread length: 50mm
Total length of rod: 121mm
Actuator diameter: 74mm
Actuator length: 68mm
Connection pressure line: Ø 6mm
