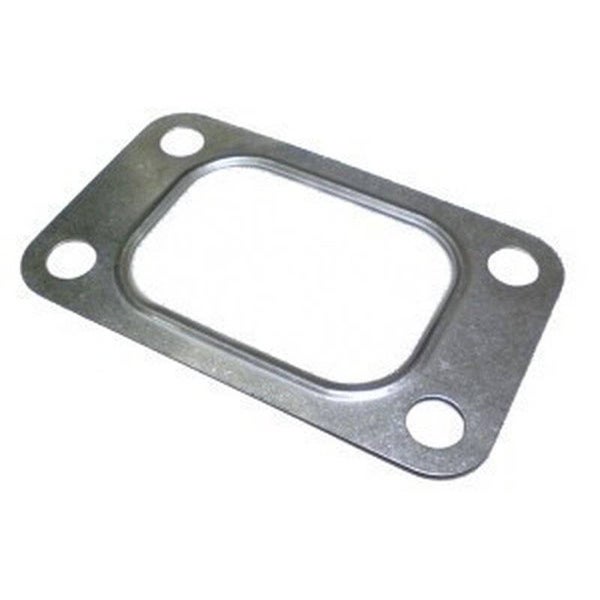

Exhaust Manifold Gasket T3 / GT3X / K27 Single Scroll / volute flow

Premium metal manifold to turbine gasket

Gasket between exhaust manifold and turbocharger

The gasket is made of stainless steel die-cut. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.

Material: stainless steel
Total dimensions: 110mm x 69mm
Dimensions cut-out: 61mm x 44mm
Hole distance: 86mm x 46mm
For / Fits:
turbocharger T3(X) bis T37, turbocharger KKK27 a.o. with Single Scroll / Volute Flow turbine housing
Garrett T3
Garrett T3/T4 (excl. pure T4-turbos)
Garrett GT32
Garrett GT35
Garrett GT37
Garrett GT30R , GT3076R , GT3076RS , GT30RS , GT30R HF
Garrett GT35R , GT3582R , GT35/40R , GT35R HF
Garrett GT3082R , GT30/40R , GT3082R HF
Garrett GT3071R
BorgWarner KKK K27

as well as all other Garrett turbochargers with T3 turbine housings. ZB. GT2554R with T31 turbine housing and similar.
BorgWarner EFR7064 (with T3 turbine housing)
BorgWarner EFR7163 (with T3 turbine housing)
BorgWarner EFR7670 (with T3 turbine housing)
BorgWarner EFR8374 (with T3 turbine housing)
BorgWarner EFR9180 (with T3 turbine housing)
