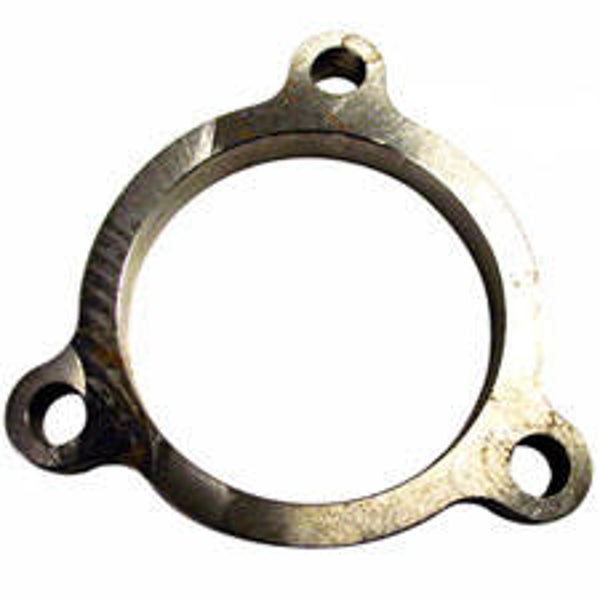

Downpipe Flange 3-bolt for T3 Ford WG Flapper

Flange for fabrication of the downpipe

Premium mild steel downpipe flange

This flange is used to fit the downpipe to the turbocharger, at the turbine outlet. All flanges are perfectly even and fit 100%. They are cut by water-jet or CNC milled to prevent warping.

Material: steel
Material thickness: 10mm
Dimensions cut-out: 60mm inner diameter
Thread: for M8
Extras / Features: No threads! 9mm holes!

Fits: Flapper Adapter for T3 Ford exhaust housings with 3 bolt flange (part number: 1705030503)
