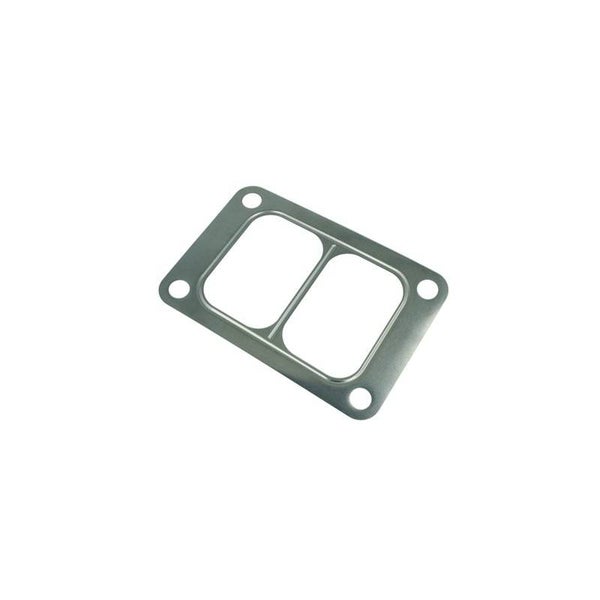

Exhaust Manifold Gasket T6 / GT4X / S400 / S500 TwinScroll - divided

Premium metal manifold to turbine housing gasket

Gasket between exhaust manifold and turbocharger

The gasket is made of stainless steel die-cut. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.

Material: stainless steel
Total dimensions: 135mm x 92mm
Dimensions cut-out: 61mm x 41,4mm
Hole distance: 113mm x 70mm

For / Fits:
turbocharger GT4X / GT5X / GT6X / S400 / S500 withdivided / Twin Scroll turbine housings
Garrett GT4708 , GT4780
Garrett GT4718 , GT4788
Garrett GT45R , GT4508R
Garrett GT47R , GT4780R , GT4708R
Garrett GT47R , GT4788R , GT4718R
Garrett GT5533R , GT5541R
Garrett GT6041R
BorgWarner AirWerks S400SX-E (T6 TwinScroll)
BorgWarner AirWerks S400SX4 (T6 TwinScroll)
BorgWarner AirWerks S500SX-E (T6 TwinScroll)
BorgWarner AirWerks S500SX (T6 TwinScroll)

Holset HX60/80/82
