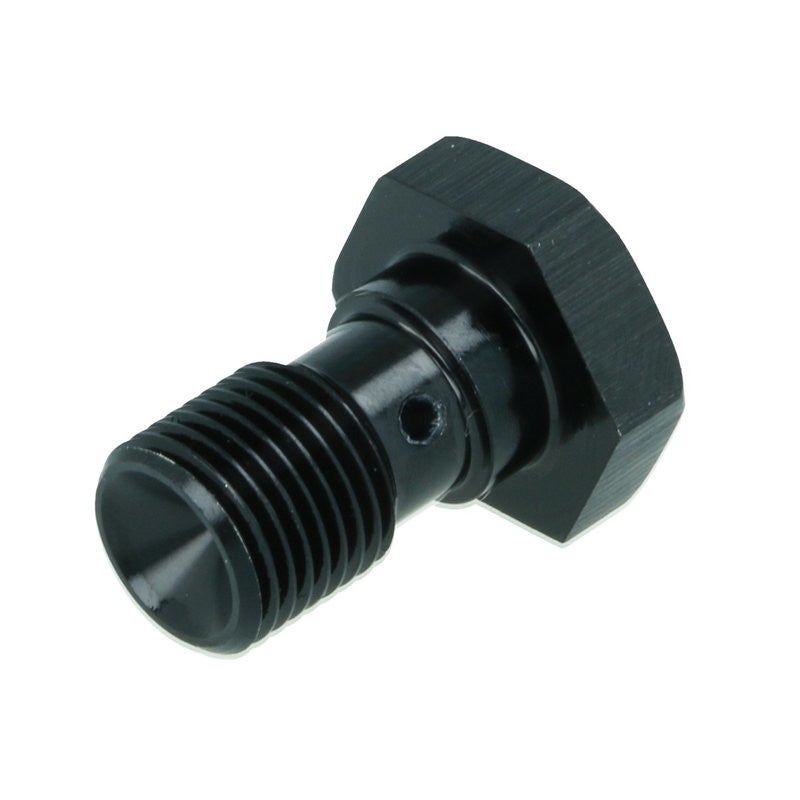

Banjo Bolt for GT-R Turbocharges

For oil feed lines with restrictor

Required when oil pressure exceeds 3bar

If the standard oil feed is to large, we offer this banjo bolt for very confined spaces. The oil restrictor is required for all ball bearing turbochargers GT25 to GT35 when mounted to engines producing more than 3bar oil pressure under full load. If neglected, a bearing failure is very likely to happen.

The banjo bolt fits to 12mm banjo fittingst. The special design of the banjo bolt reduces the oil pressure. Compared to common restrictors, no 0,9mm restriction bore is required. The operation principle itself is equal nevertheless. For safety we suggest fitting our oil feed in-line filter to prevent the adapter from clogging.

Thread: M11x1
Wrench size: 13mm
Material: Aluminum black anodized

Fits:
Garrett GT2554R (471171-5003)
GT2854R (471171-5009)
GT2859R (780371-5001 / 707160-5009)
GT2860R (707160-5007 / 707160-5005 / 739548-5009)
GT2860RS (739548-5001 / 739548-5005)
GT2871R (743347-5001 / 743347-5002 / 743347-5003 / 743347-5004 / 472560-5015 / 771847-5001 / 780371-5002 / 707160-5010)
GT2876R (705330-5001 / 705330-5002)
GTX2860R (816364-1)
GTX2863R (816365-1)
GTX2867R (816366-1)
GT3071R-WG
GT3071R (CHRA 700177-5023)
GT3076R-WG
GT3076R-C10
GT3076R (700382-5012)
GTX3067R (824727-0001)
GTX3071R (803712-1)
GTX3076R (803713-1)
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)

Worauf Sie achten sollten:

The feed line should be at least Dash 4 diameter. The return line should be at least Dash 10 or at least 16mm inner diameter!
