Watercooled intercooler - 310x320x115mm - 76mm

not in stock will be reordered for you

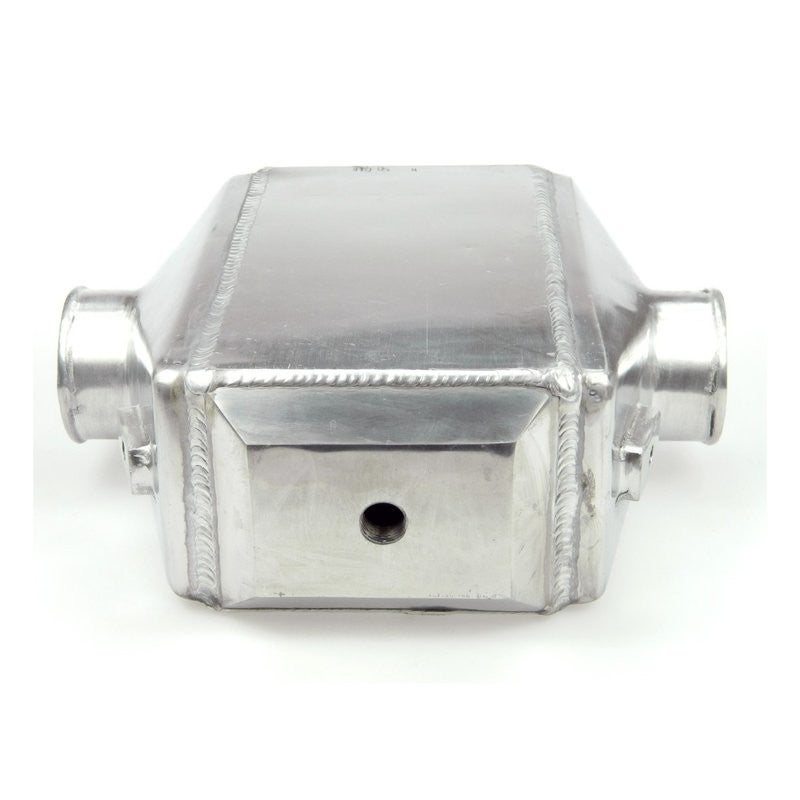

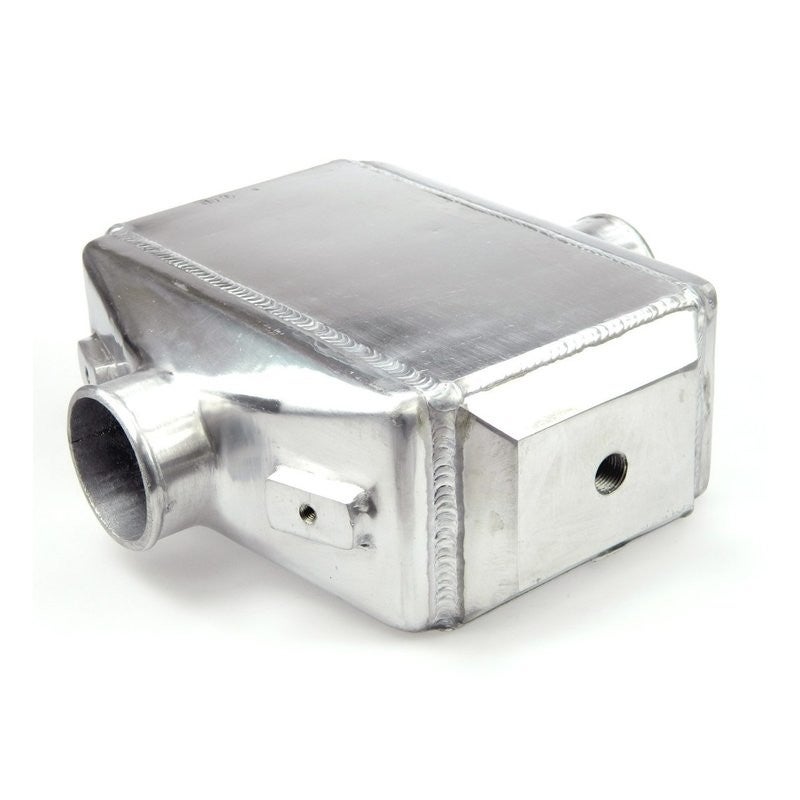

Water cooled intercooler, universal, 76mm = 3 inches - 310x320x115mm
Ideal for limited space and short airways
Can be used in turbo engine and compressor engine

In general, we recommend to release the intercooler via an air / air CAC. However, there are situations in which a charge air cooler, which is cooled by the airstream, just can not be installed. Very often eg. in rear engines. Likewise, in certain applications, a particularly short air flow is advantageous, where the airway through the vehicle front is just too long. For these cases we also offer various water-cooled intercoolers. The radiators must be installed with a water circuit with a small radiator, which then sits in the wind and cools the water, which flows through the slats of the intercooler and then in turn to cool the charge air.

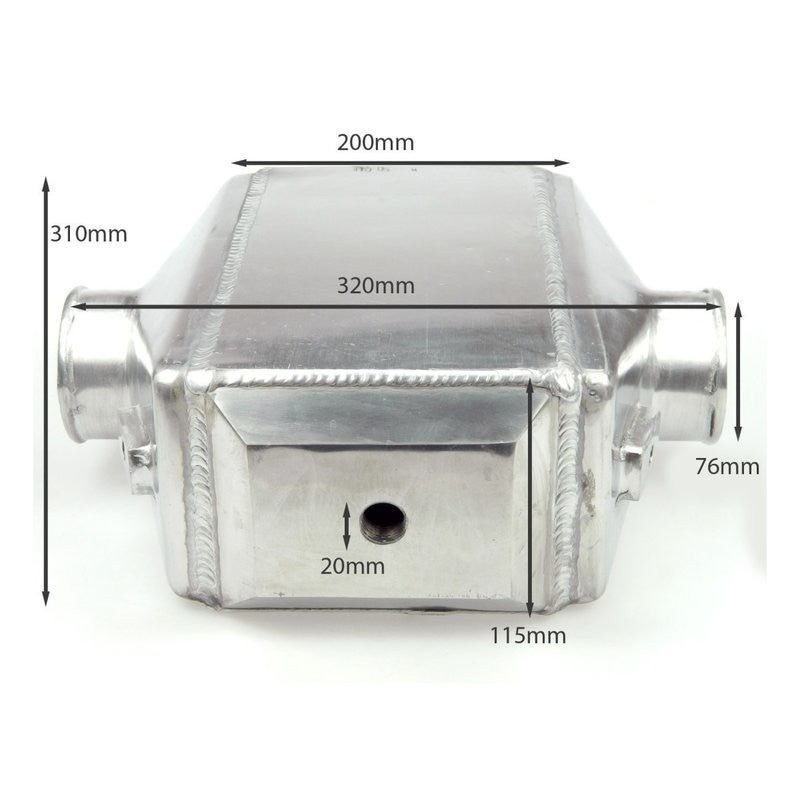

Dimensions

Length: 310mm
Width: max 320mm
Height: 115mm
Connection diameter: 76mm = 3 "
Threaded water pipe: 1/2 NPT

Note:
Our water-cooled intercoolers are suitable for a maximum water pressure of 1.93 bar / 28 PSI.
